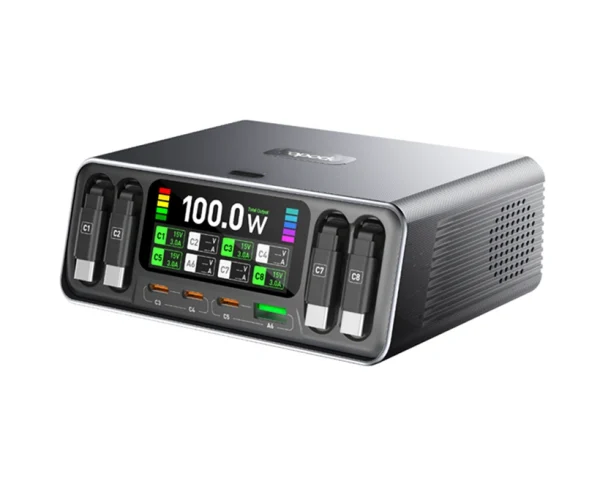

The WLX80C is a premium 8-port desktop fast charger engineered for high-demand environments where multiple devices need simultaneous fast charging. Featuring 4 retractable cables, 3 USB-C ports, and 1 USB-A port, this charging station delivers up to 140W of power (C3/C4 ports) via advanced GaN technology-1. Whether you’re outfitting an office, conference room, coffee shop, studio, or workstation, the WLX80C offers a clean, tangle-free charging solution with intelligent power distribution and real-time TFT display monitoring.
Key Highlights

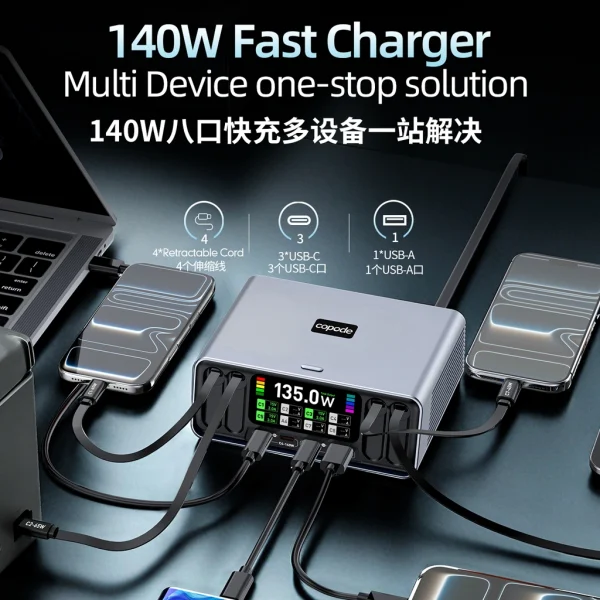

8 Ports Total – 4 retractable USB‑C cables + 3 fixed USB‑C ports + 1 USB‑A port
140W Max Output (C3/C4 single‑port) – supports PD 3.1 (28V/5A)

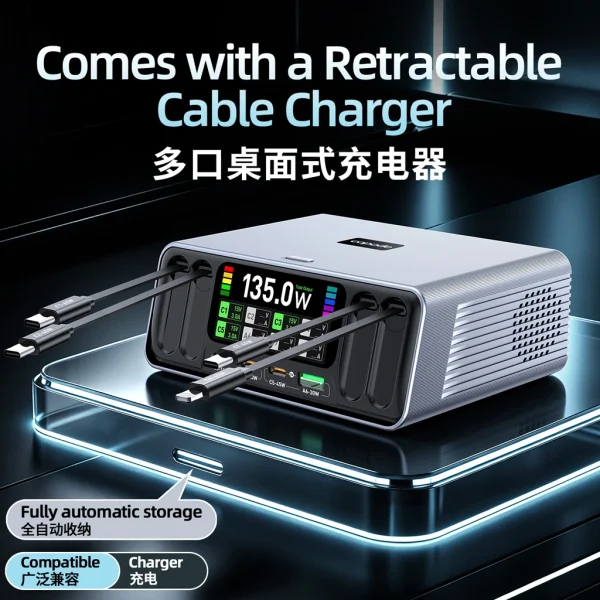

Fully automatic cable retraction – pull, use, and store with ease
Smart TFT display – shows real‑time voltage, current, and power per port
Sleek metal spray paint finish with embedded connector slots
Comprehensive fast‑charging protocols – PPS, PD3.1/3.0, QC4.0+/3.0, AFC, FCP, SCP, Apple 2.4A, BC1.2, PE+2.0
Technical Specifications
| Parameter | Details |
|---|---|
| Model | WLX80C |
| Product Type | 8‑Port Desktop Fast Charger |
| Total Ports | 4 Retractable USB‑C + 3 Fixed USB‑C + 1 USB‑A |
| Max Single‑Port Output | 140W (C3/C4, PD 3.1) |
| Input Voltage | 100V–240V ~ AC, 50/60Hz |
| Input Current | ≤2.5A |
| Efficiency | ≥85% at full load |
| Retractable Cable Length | 70cm each |
| Dimensions | 133 × 10 × 48 mm (L×W×H) |
| Net Weight | 395g ± 10g |
| Housing | Metal spray paint finish, silver or black |
| Display | TFT LCD smart display |
| Operating Temperature | 0°C to +75°C |
| Storage Temperature | -20°C to +45°C |
| Relative Humidity | ≤90% |
| Protections | Over‑current, over‑voltage, short‑circuit, over‑temperature, over‑power |
| Certifications | CE, FCC, RoHS, UL compliant |
Port Output Specifications
Retractable USB‑C Ports (C1, C2, C7, C8)
| Port | Max Power | Output Profile |
|---|---|---|
| C1 / C2 | 65W each | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A; PPS: 3.30–11.00V/5.0A, 3.30–21.00V/3.0A |
| C7 / C8 | 45W each | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A; PPS: 3.30–16.00V/3.0A |
Fixed USB‑C Ports (C3, C4, C5)
| Port | Max Power | Output Profile |
|---|---|---|
| C3 / C4 | 140W each | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A; PPS: 3.30–21.00V/5.0A, 15.00–28.00V/5.0A |
| C5 | 45W | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A; PPS: 3.30–16.00V/3.0A |
USB‑A Port (A6)
| Port | Max Power | Output Profile |
|---|---|---|
| A6 | 30W | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A (QC3.0) |
Supported Protocols by Port
| Port(s) | Supported Protocols |
|---|---|
| C1, C2 | PPS, PD3.0, QC4.0+, QC4.0, QC3.0, QC2.0, AFC, FCP, SCP, Apple 5V/2.4A, BC1.2, PE+2.0, PE+1.1 |
| C3, C4 | PPS, PD3.1, PD3.0, QC4.0+, QC4.0, QC3.0, QC2.0, AFC, FCP, SCP, Apple 5V/2.4A, BC1.2, PE+2.0, PE+1.1 |
| C5, C7, C8 | PPS, PD3.0, QC4.0+, QC4.0, QC3.0, QC2.0, AFC, FCP, SCP, Apple 5V/2.4A, BC1.2, PE+2.0, PE+1.1 |
| A6 | QC3.0, QC2.0, AFC, FCP, SCP, PE+2.0, PE+1.1, BC1.2, DCP, Apple 2.4A |
Smart Power Distribution
The WLX80C intelligently allocates power across multiple ports based on connected devices. Key distribution scenarios include:
| Port Combination | Max Output |
|---|---|
| C1 + C2 | 65W + 65W |
| C1 + C3 (or C4) | 65W + 100W |
| C1 + C5 (or C7/C8) | 65W + 45W |
| C1 + A6 | 65W + 30W |
| C3 + C5 (or C7/C8) | 100W + 45W |
| C3 + A6 | 100W + 30W |
| C5 + C7 / C5 + C8 / C7 + C8 | 45W + 45W |
| C3 + C4 | 5V/1.5A + 5V/1.5A |
| C5 + A6 | 5V/1.5A + 5V/1.5A |
Additional combinations and dynamic allocations are supported based on real‑time load detection.
Key Features
1. Retractable Cables – Tangle‑Free Convenience

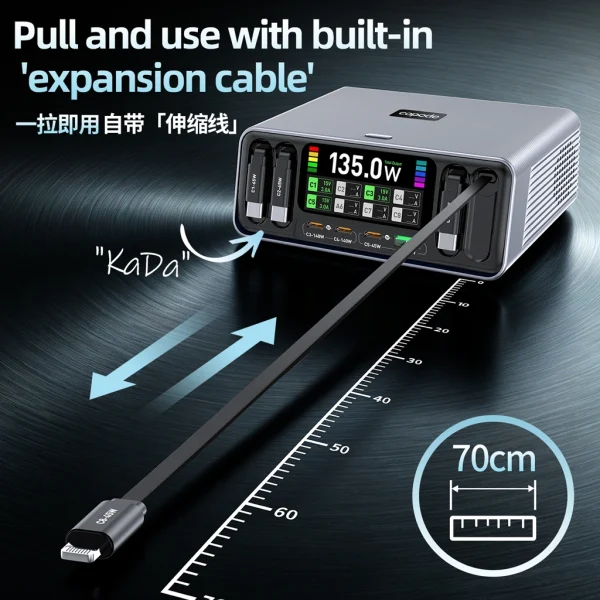

Four built‑in retractable USB‑C cables (70cm) pull out smoothly and retract automatically when not in use. No more cable clutter – simply pull, charge, and release.

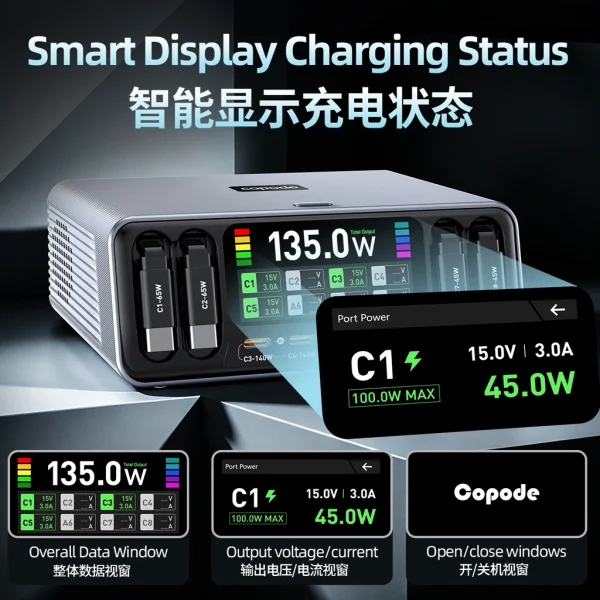

2. Smart TFT Display
The integrated TFT LCD screen shows real‑time voltage, current, and power for each active port. Monitor your charging status at a glance.
3. 140W PD 3.1 Support
Ports C3 and C4 deliver up to 140W (28V/5A) via PD 3.1, capable of fast‑charging even the most power‑hungry laptops.
4. Wide Device Compatibility
Supports laptops (MacBook Pro, Dell XPS, gaming laptops), tablets (iPad Pro/Air), smartphones (iPhone, Samsung Galaxy, Huawei, Xiaomi, Google Pixel), Nintendo Switch, power banks, cameras, and more.
5. Comprehensive Safety Protections
Built‑in over‑current, over‑voltage, short‑circuit, over‑temperature, and over‑power protection ensure safe charging for all connected devices.

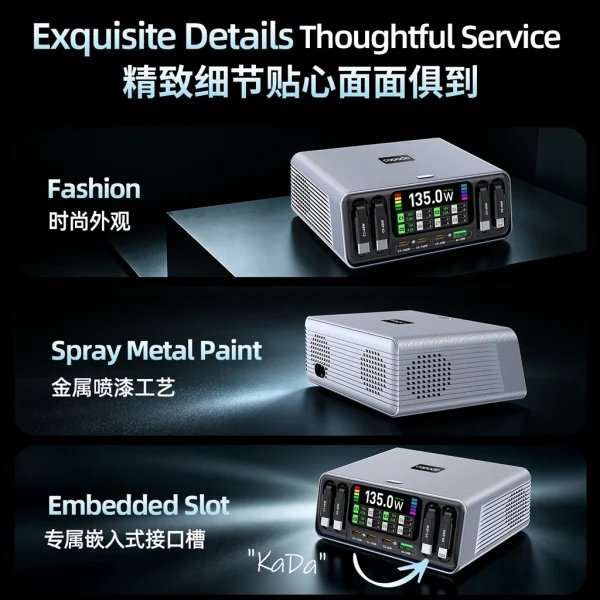

6. Premium Build Quality
Metal spray paint finish with embedded connector slots provides a sleek, professional appearance and durable construction.
Applications
-
Offices & Meeting Rooms – Keep laptops, tablets, and phones charged for the whole team
-
Coffee Shops & Co‑working Spaces – Offer customers convenient multi‑device charging
-
Home Workstations – Eliminate cable clutter with retractable cable management
-
Studios & Live Streaming – Power cameras, monitors, and phones simultaneously
-
E‑commerce & Business Operations – Reliable charging for multiple work devices
-
Security & Surveillance – Keep monitoring equipment and communication devices powered
FAQ
General Questions
Q1: What devices can the WLX80C charge?
A: Virtually any USB‑C or USB‑A device. It supports laptops (MacBook, Dell, HP, Lenovo), tablets (iPad Pro/Air, Android tablets), smartphones (iPhone, Samsung, Huawei, Xiaomi, Google), Nintendo Switch, power banks, wireless earbuds, cameras, and more.
Q2: Can all 8 ports be used simultaneously?
A: Yes, all 8 ports can be used at the same time. The charger dynamically distributes power based on each connected device’s needs.
Q3: How does the retractable cable mechanism work?
A: Simply pull the built‑in cable to your desired length (up to 70cm) and plug in your device. When finished, gently pull again to trigger automatic retraction.
Q4: Does the TFT display show real‑time data?
A: Yes. The display shows output voltage, current, and power for each active port.
Q5: What safety features are included?
A: Over‑current, over‑voltage, short‑circuit, over‑temperature, and over‑power protection.
Q6: Is this charger based on GaN technology?
A: Yes, the WLX80C utilizes advanced GaN technology for higher efficiency and lower heat in a compact form.
B2B / OEM & ODM Questions
Q7: Do you offer OEM/ODM services for this charger?
A: Yes. As a leading China‑based manufacturer, we offer full OEM/ODM services including custom branding, packaging, port configurations, and power specifications.
Q8: What is the minimum order quantity (MOQ)?
A: We support flexible MOQ – contact our sales team to discuss your volume needs.
Q9: What certifications are available?
A: The WLX80C meets USB‑IF, CE, FCC, RoHS, and UL standards. Additional certifications (CB, ETL, etc.) can be arranged per market.
Q10: Can you customize housing color, cable length, or port configuration?
A: Absolutely. We offer flexible customization including housing colors, cable lengths, port combinations, and even custom circuitry.
Q11: What is the typical defect rate?
A: Our quality control process maintains a defect rate below 0.1%.
Q12: What are typical lead times for bulk orders?
A: Lead times depend on order volume and customization. Please contact our sales team for a specific timeline.
