9-in-1 GaN Desktop Charger – 140W PD3.1 Laptop Port, 8 Wired Ports + 15W Magnetic Wireless, Smart Display

Feature Description

One Dock for Your Whole Digital Life – 9 Devices, No Waiting

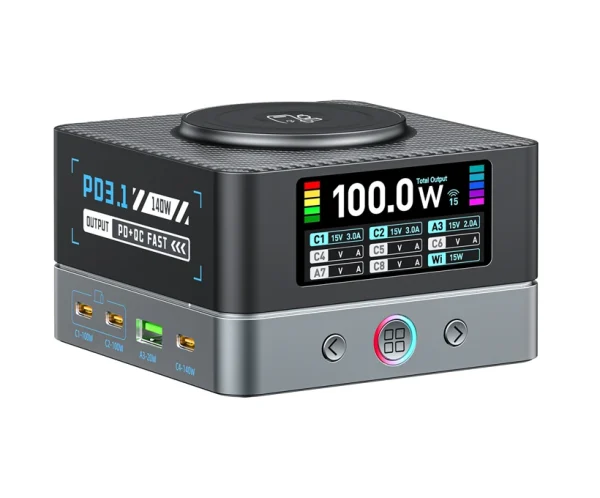

The WLXR8A is a high‑density desktop charging station that combines 6 USB‑C ports, 2 USB‑A ports, and a magnetic wireless charging pad. With a dedicated 140W PD3.1 port and five additional 100W ports, it powers your MacBook Pro, iPad, iPhone, Samsung, Switch, watch, earbuds, and more – all at the same time.

140W PD3.1 – Laptop Full Speed in Minutes

• One USB‑C port (C4) delivers up to 140W via PD3.1 (28V/5A).

• Charge a 16‑inch MacBook Pro from 0‑80% in ~40 minutes.

• Perfect for video editing, gaming, or all‑day work.

9‑in‑1 High‑Density Design

• 6x USB‑C (100W or 140W), 2x USB‑A (20W), plus a 15W magnetic wireless pad.

• Charges 9 devices at once – declutter your desk, home, or travel bag.

Smart Color Display – Know Your Power

• High‑definition screen shows real‑time wattage per port.

• Breathing light indicators add a tech‑forward ambiance.

• One‑key toggle between main dashboard and single‑port detail view.

GaN + Active Cooling – Fast, Cool, Safe

• Third‑generation gallium nitride (GaN) chip for higher efficiency and less heat.

• Full thermal control system keeps temperatures low even under heavy load.

Intelligent Power Allocation

• Automatically distributes power based on connected devices.

• Example combinations:

  • C1 (100W) + C4 (140W) → both laptops at full speed

  • C4 (140W) + C5 (100W) + A7 (20W) + wireless (15W)

• No manual settings needed – just plug and play.

Wide Protocol Compatibility

• Supports PD3.1, PD3.0, QC3.0, FCP, AFC, and more.

• Works with laptops, tablets, phones, gaming devices, and wearables.

8 Safety Protections

• Over‑charge, over‑current, over‑voltage, over‑power, short‑circuit, temperature, static, and flame‑retardant shell protection.

Product Specifications

Ports & Outputs

Example Power Distribution (Smart Allocation)

Supported Protocols

PD3.1, PD3.0, QC3.0, FCP, AFC

Safety Features

8 layers: over‑charge, over‑current, over‑voltage, over‑power, short‑circuit, temperature, ESD (static), flame‑retardant casing.

FAQ

Q1: Can I charge my 16‑inch MacBook Pro at 140W while also charging another laptop?
Yes. Use the C4 port for the MacBook Pro (140W) and one of the 100W ports (C1/C2/C5/C6/C8) for a second laptop. The charger intelligently allocates power to both.

Q2: Does the magnetic wireless pad work with non‑Apple phones?
Yes. It supports any Qi‑compatible device. For best magnetic attachment, use a phone with built‑in magnets (iPhone 12–16) or a magnetic case (Samsung, Google Pixel, etc.).

Q3: Does the screen show power for all ports at the same time?
Yes. The main dashboard displays real‑time wattage for every active port. You can also toggle to a single‑port detailed view.

Q4: What’s the difference between the WLX-R8A and the WLX-F2?
The R8A has more ports (8 wired + wireless vs. 5 wired on the F2) and a higher total device count (9 vs. 6). Both support 140W PD3.1, but the R8A is designed for larger desktop setups and multiple high‑power devices simultaneously.

Q5: Does it get hot when using all 9 ports?
No. The WLXR8A uses a GaN chip + advanced thermal management. The housing is flame‑retardant, and the system actively dissipates heat to stay within safe limits.

Q6: Can I charge my smartwatch on the wireless pad?
Yes, as long as your watch supports Qi wireless charging. For Apple Watch or other proprietary chargers, you may need a separate magnetic puck – but the pad works with most standard Qi watches and earbuds cases.

Q7: Is a 140W USB‑C cable included?
Cable is usually not included. To achieve 140W, you must use an E‑marked USB‑C cable rated for 28V/5A (PD3.1). Standard 100W cables will limit output to 100W.

Q8: What is “680W8PORT” shown on the screen?
That is a product series/logo name displayed on the screen interface. The actual maximum combined output is dynamically allocated and limited by input and thermal design – it is not 680W. The model WLXR8A delivers up to 140W per port with intelligent sharing.
